Cinema RAW V 3.0
Aircam RAW octocopter is a professional rig capable of carrying Alexa Mini, Mini LF and RED cameras for 8-10 minutes.
- Camera: Alexa Mini/ Alexa Mini LF) full range of RED
- Gimbal: RAW, maximum weight lens 1,6 kg
- Lens options: Zeiss CP2 18, 25, 35, 50 mm, P+S Technik Anamorphic 40, 50 mm, Arri Ultra Prime 20-65 mm, Sigma 14FF-50FF, Gecko-Cam Genesis G35 14,5 mm-85mm, H.I.T Celere HS 18,5mm-85mm
- Link: Paralinx HD down link with external recorder
- Flight time: 8-10 minutes
- Speed: Approx 70 km/h
- Distance: 150 meters
- Maximum flight altitude: 120 m
- Maximum wind speed resistance : 10 m/s
- Weight: 20-23 kg depending of payload
- Crew size 2
For any questions or technical specifications contact Lars Palm
Phone +46(0)7044649610 mail: info@lpairdesign.se

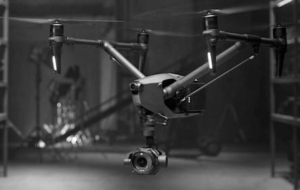

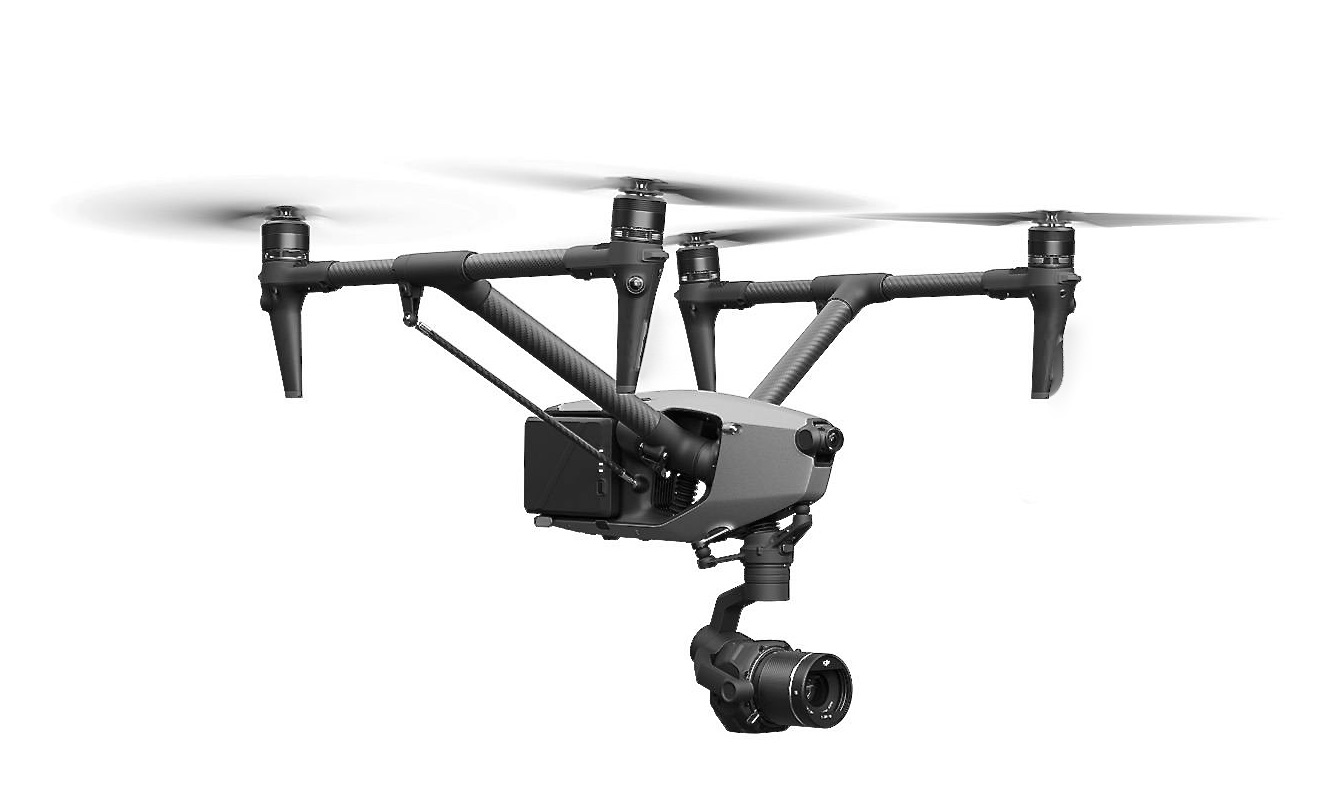

DJI Inspire 3
Inspire 3 was connived to be DJI new flagship Cinematography Drone DJI has produced. The Inspire 3 is able to record video at up to 8K in Cinema DNG/RAW and 8K in Apple ProRes when used with the Zenmuse X9 camera.
- Camera: Full-frame 8K/75fps ProRes, RAW
- Sensor 35mm full-frame CMOS
- Lens options: DJI Hasselblad 18 mm/full frame, 24 mm, 35 mm, 50 mm, 75 mm
- DNG Full Frame 8K/25fps
- Repeatable Routes
- 3D Dolly
- Dual Native ISO
- 80% Tilt Boost
- 360% Pan Dual Conffigurations
- High Dynamic Range of 14+ Stops
- 1/1.8-inch Ultra-Wide Night- Vision FPV Camera
- Centimeter-Level RTK Positioning and Waypoint Pro
- D-RTK 2 High-Precision GNSS Mobile station
- Flight time: 25-28 minutes
- Speed: approx 97 km/h
- Maximum flight altitude: 120 m
- Maximum wind speed resistance: 14 m/s
- Weight: 3,95 kg
- Operating Temperature -20-to +40
- Crew size 2
- One complete set Inspire 2 for backup
For any questions or technical specifications contact Lars Palm
Phone +46(0)7044649610 mail: info@lpairdesign.se

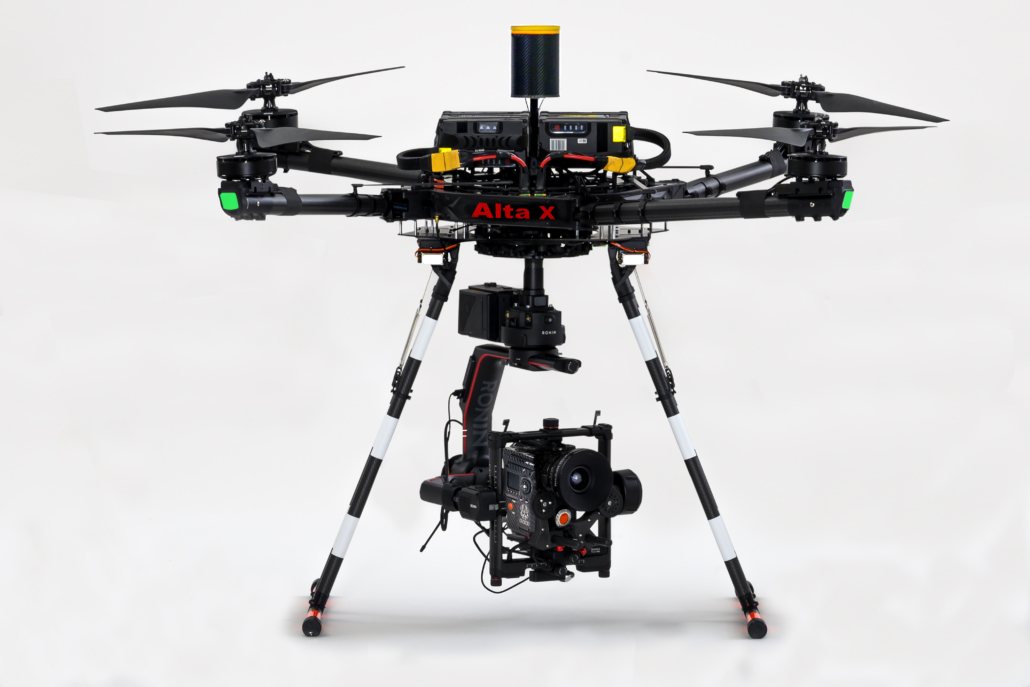

Freefly Alta-X/ Cinema Heavy Lifter
Alta X is one of the world’s toughest, safest, and most capable heavy lift cinema drone. Alta X can carry payloads up to 15 kg for over 10 minutes.
- Camera options: Alexa Mini, Alexa Mini LF, full range of RED
- Gimbal DJI Ronin 2
- Lens options: Cooke, Hawk, Anamorphic, Arri Master Prime
- Link: Paralinx HD down link with external recorder
- Flight time: 10-20 minutes depending of payload
- Speed: approx 70 km/h
- Distance: 150 meters
- Maximum wind speed resistance: 10 m/s
- Maximum flight altitude: 120 m
- Weight: 20 -25 kg depending of payload
- Parachute
- Crew size 2-3
For any questions or technical specifications contact Lars Palm
Phone +46(0)7044649610 mail: info@lpairdesign.se

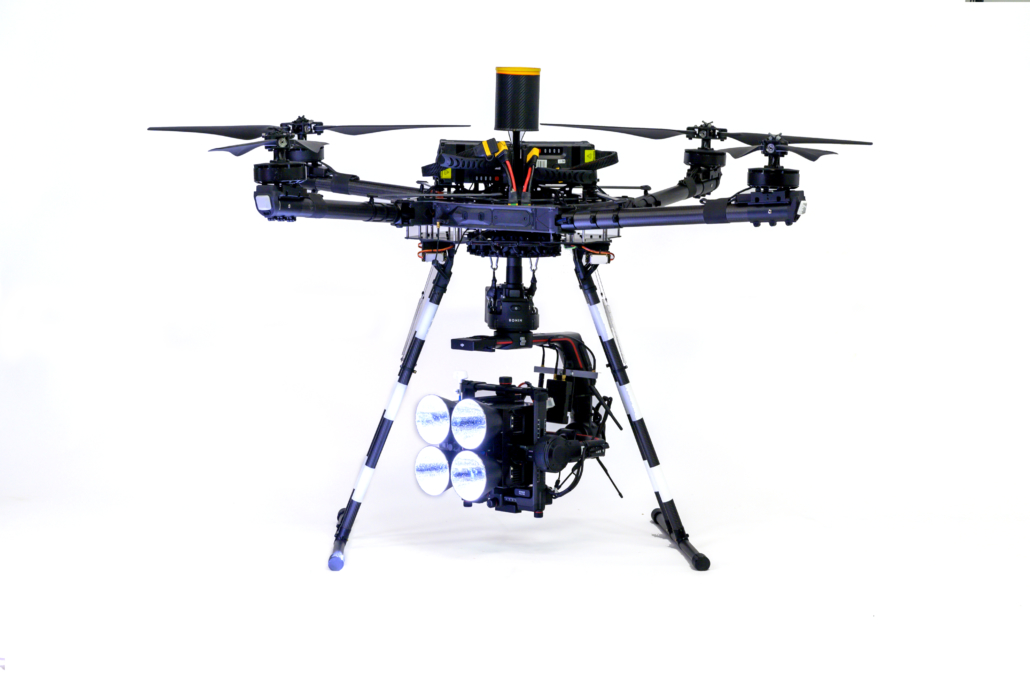

Freefly Alta-X + LED
Our Freefly Alta-X LED carrying 2×2 Array lights from Stratus Leds.
- 52,000 Lumens of light
- 5500 K
- RC-dimmer
- Gimbal: DJI Ronin 2
- FPV link system: for light operator 2,4 GHz
- Distance: 400 meters
- Maximum flight altitude 120 m
- Maximum wind speed 10 m/s
- Speed: approximation40-50 km/h
- Flight time:10-20 minutes
- Parachute
- Crew size 2
For any questions or technical specifications contact Lars Palm
Phone +46(0)7044649610 mail: info@lpairdesign.se

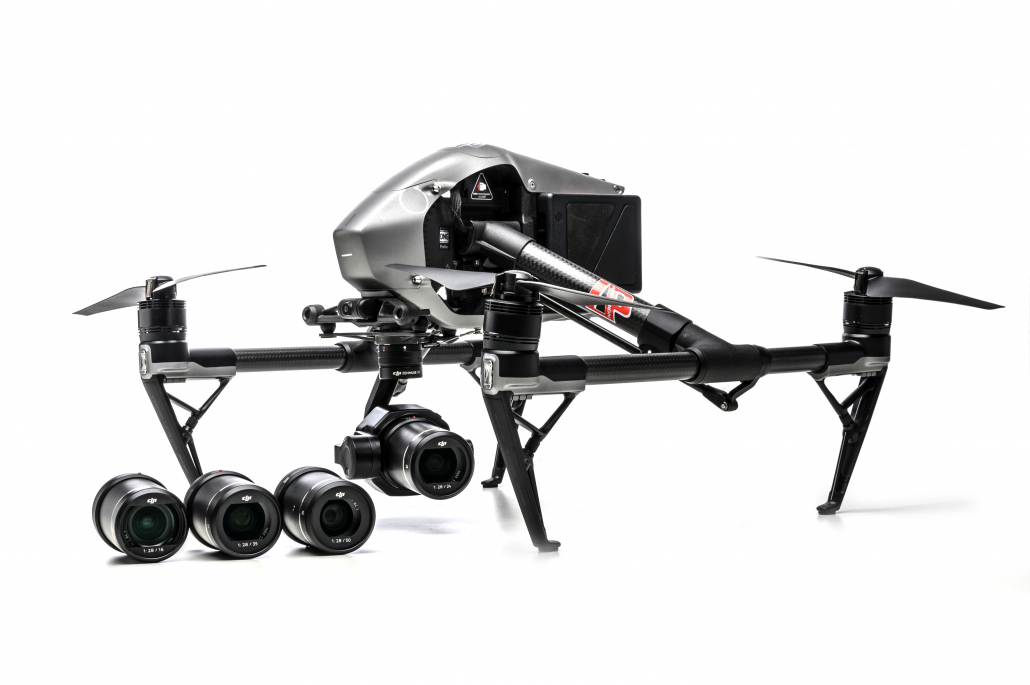

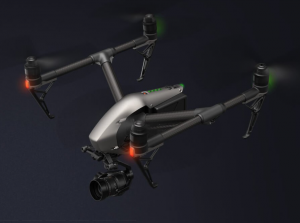

DJI Inspire 2
Inspire 2 was connived to be the most versatile professional aircraft DJI has produced. The Inspire 2 is able to record video at up to 6K in Cinema DNG/RAW and 5,2K in Apple ProRes when used with a Zenmuse X7 camera. the image processing system is CineCore2.1.
- Camera: DJI Zenmuse X7 (6K Cinema DNG, 5,2K Apple ProRes)
- Lens options: Hasselblad 16 mm, 24 mm, 35 mm, 50 mm
- Flight time: 15-20 minutes
- Speed: approx 90 km/h
- Maximum flight altitude: 120 m
- Maximum wind speed resistance: 12 m/s
- Weight: 4 kg
- Crew size 1-2

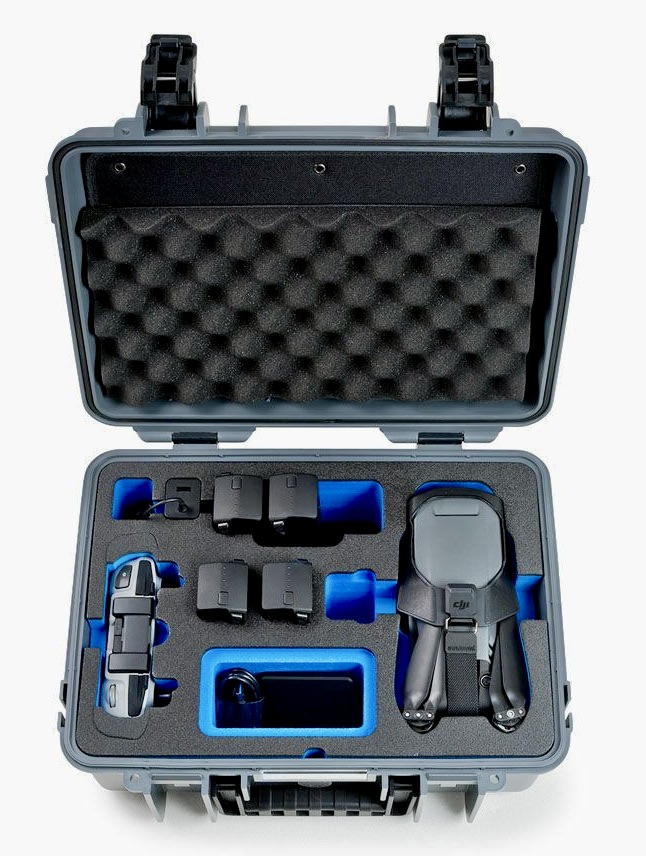

- Mavic 3 Cine for backup
For any questions or technical specifications contact Lars Palm
Phone +46(0)7044649610 mail: info@lpairdesign.se

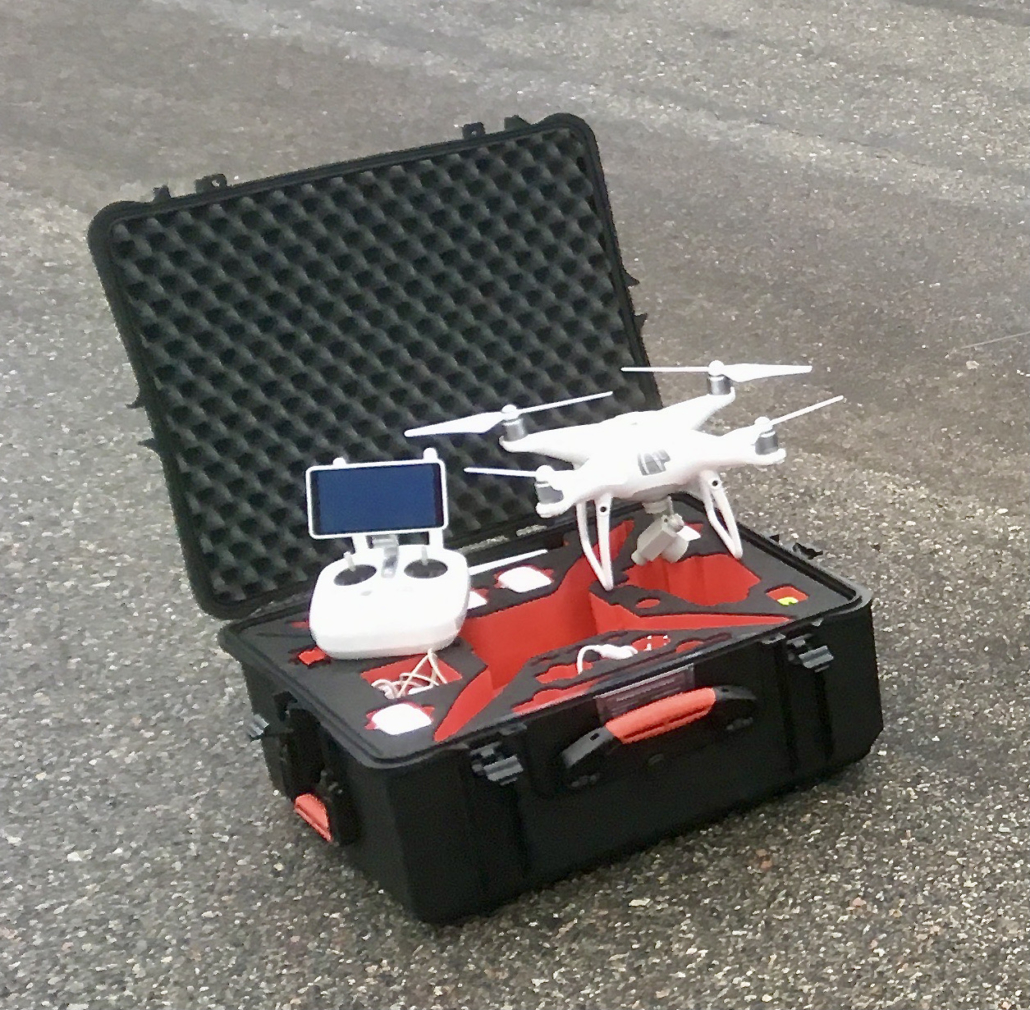

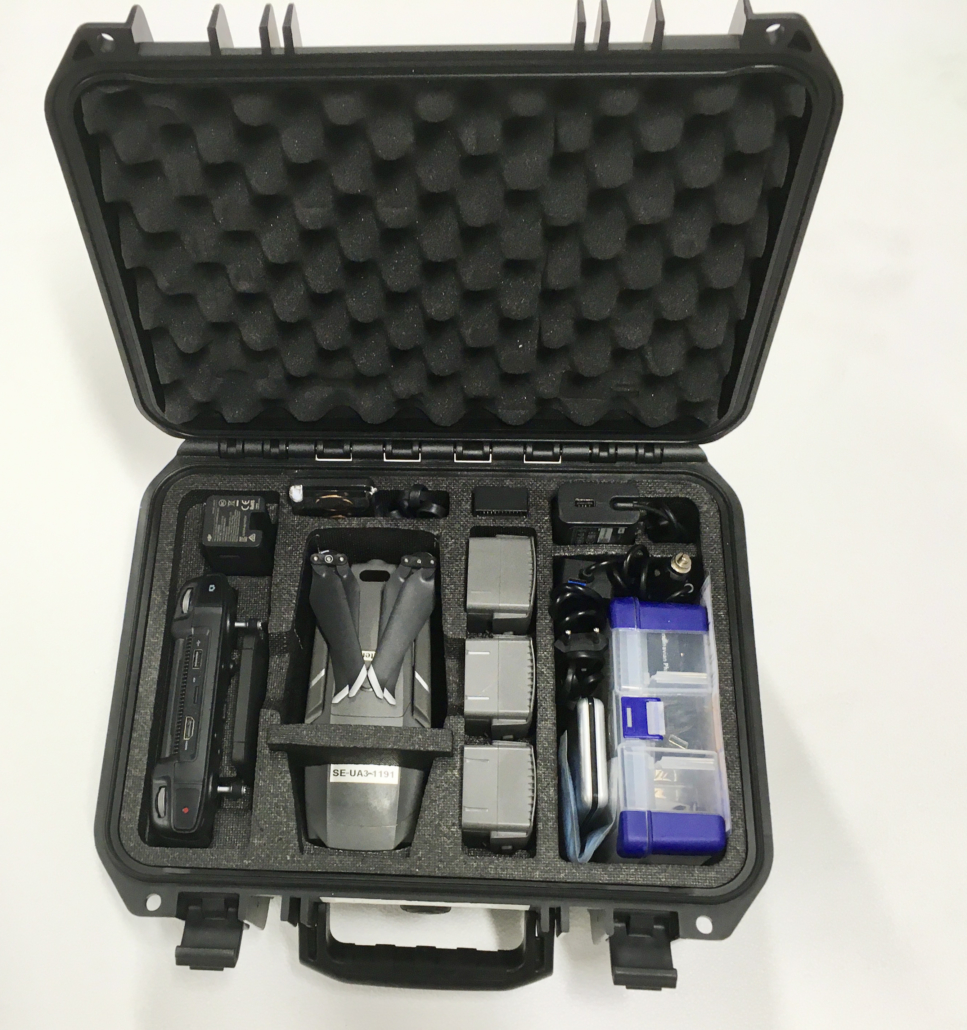

DJI Mavic 2 Pro / Phantom 4 Pro for Mapping – Inspection
We also have systems to meet smaller budgets, e.g. DJI Mavic 2 Pro / DJI Phantom 4 Pro+
Mavic 2 Pro / Phantom 4 Pro+ is equipped with an improved camera with 1-inch sensor and 20 megapixels and can film in 4k / 60 fps.
When working with Mavic 2 Pro / Phantom 4 Pro+
1,000 SEK is charged per hour or by appointment.
- Crew size 1-2
For any questions or technical specifications contact Lars Palm
Phone +46(0)7044649610 mail: info@lpairdesign.se
